XML Hacking: Managing Styles

Are you managing styles in your Word documents? A hallmark of a professionally-created template is the appearance of the Quick Style Gallery. If I open a template and see this:

Not Managing Styles

I realize the person who constructed the file doesn’t know better or doesn’t care. The clue are the 4 zombie styles on the right side. If you expand the gallery, you’ll see 8 more zombie styles. These 12 are automatically generated in every new installation of Word. Nobody uses them, they just clutter the interface. If you’re managing styles, you’ll make them disappear.

These 12 can’t be deleted, they are termed built-in styles and the Delete button is disabled in the style management dialog. But in Word for Windows, there is a Style Management panel called Recommended, where you can Hide them or optionally apply Hide Until Used. This last attribute keeps the style out of the Quick Style Gallery until the first time you apply it in a document, at which time it becomes visible.

But where is the Recommended panel in Word for Mac? Did someone Hide that too? No, it’s just not an option for Mac users. Microsoft left it out (speculate at will). But all is not lost: You can still manage style visibility on the Mac, you just have to do it with XML Hacking. New hackers should read XML Hacking: An Introduction and XML Hacking: Editing in macOS before trying these steps.

When you first open an Office XML field, the content is linearized and difficult to read. In BBEdit, apply Test>Apply Text Filter>run_tidy, an add-on script for BBEdit that you can download here. Voila! Readable XML!


Managing Styles with XML Editing

Word styles are stored in word/styles.xml and word/stylesWithEffects.xml. Word 2007/2008 reads styles.xml while Word 2010/2011 and later use stylesWithEffects.xml, so whatever changes you make, do them to both files. Word doesn’t always create a styleWithEffects.xml part, so if there isn’t one in your file, just edit styles.xml. Word’s built-in styles are in the w:latentStyles part. Let’s work on that first, then deal with custom styles.

The style order in the XML file has nothing to do with the order of styles in the user interface, so it’s best to search for them. Start with the Title style. The default listing looks like this: (You may see a somewhat different collection of tags from different Word versions.)

<w:lsdException w:name="Title" w:semiHidden="0" w:uiPriority="10" w:unhideWhenUsed="0" w:qFormat="1"/>

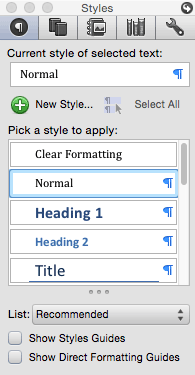

The Styles list: a good place to display occasionally-required typestyles.
Managing Styles: the master Styles List

To make this style disappear from the Quick Style Gallery, but still appear on the Styles list, just delete the w:qFormat="1" tag. If you want to remove a style not only from the Quick Style Gallery, but also from the master list of recommended styles, then don’t bother with w:qFormat="1", just remove w:semiHidden="0". Finally, to give the style the ability to remain on the Styles list, then be added to the Quick Style Gallery when it is first used, leave the other tags as is and change w:unhideWhenUsed="0" to w:unhideWhenUsed="1".

Besides the Title style, the other zombie styles you’ll probably want to remove are:

Subtitle
Subtle Emphasis
Emphasis
Intense Emphasis
Strong
Quote
Intense Quote
Subtle Reference
Intense Reference
Book Title and
List Paragraph

Another useful edit you can make to styles is to change the number beside w:uiPriority. Decreasing this number moves a style up the list, while increasing it moves it down. You may have noticed that editing w:uiPriority in the w:latentStyles has no effect on the position of Normal style. See Custom Styles below to solve this.

For all styles that have the same level number, they are displayed in alphabetical order. I usually rank them in the order they are likely to be used, with the body text and headings at the top, followed by bulleted, numbered and lettered styles. Often you’ll have styles that serve a function in a Word file, like unique styles that are referenced by StyleRef fields. If the user doesn’t need to apply a style, hide it. The simpler you make their interface, the fewer mistakes they can make.

The styles/stylesWithEffects XML parts contain a list of exceptions. There are many styles that remain invisible until you add an exception to the list. As an example, if you want to make the Body Text style to be at the left end of the Quick Style Gallery, you would first copy and paste the exception for Normal, then change the name to Body Text. The w:uiPriority=0 tag will ensure Body Text pops to the left end.


Managing Styles: Custom Styles

To manage custom and special styles, scroll down below the latentStyles section. Here you’ll see more verbose XML like this:

<w:style w:type="paragraph" w:default="1" w:styleId="Normal">
  <w:name w:val="Normal"/>
  <w:uiPriority w:val="1"/>;
  <w:qFormat/>
  <w:rsid w:val="00AB271F"/>
</w:style>

Here’s where you can change the order of Normal. Because this XML part comes after the Normal entry in latentStyles, it over-rides those settings. Any style set to 0 will appear to the left of Normal in the Style Gallery and above Normal in the Styles List.

Here’s what a custom style looks like:

<w:style w:type="paragraph" w:customStyle="1" w:styleId="Code">
  <w:name w:val="Code"/>
  <w:basedOn w:val="Normal"/>
  <w:uiPriority w:val="6"/>;
  <w:qFormat/>
  <w:rsid w:val="00A12E2B"/>
  <w:pPr>
    <w:spacing w:after="0" w:line="240" w:lineRule="auto"/>
  </w:pPr>
  <w:rPr>
    <w:rFonts w:ascii="Bitstream Vera Sans Mono" w:hAnsi="Bitstream Vera Sans Mono"/>
  </w:rPr>
</w:style>

While you could edit all attributes of the style here, it’s easier to do through the user interface. But you can change the order, here set to 6.

Save the XML file. If you’re using BBEdit, you’re done. If you’re working with another editor, re-zip [Content_Types].xml plus the folders. Change the ending of the resulting Zip file to .docx and click on the Use .docx button when OS X asks. Open the file and check out the beautifully clean Quick Style Gallery, thanks to you managing styles!

1:44 am

15 thoughts on “XML Hacking: Managing Styles

  1. Does this work with Word 2016 Mac?

    I have followed the instructions precisely. And checked that the edits were saved.

    But when I open the doc in Word nothing that changed. very strange.

    • Yes, styles work the same in all XML versions of Office. Use of some of the parameters is not very intuitive. I covered a few different things you could do, like hiding styles or changing their order. What is it that you’re trying to change about them? If you want, you can email me (production at brandwares dot com) the before and after versions, and I’ll take a look at them. This helps me refine my article to make it more useful.

  2. I used your “w:uiPriority” tip and at first I didn’t quite work. My styles have a leading number code to put them in order, but they wouldn’t jump to the top when I assigned them to “1”. I noticed that many styles didn’t have a priority setting at all, so I just removed them entirely and voila! They’re now in numerical order. Thanks!

  3. Thank you for the article. I think I will link to it in http://addbalance/usersguide/styles.htm

    I use Strong and Emphasis on a regular basis and have even switched the keyboard shortcuts for Bold and Italic to use them. I also use (less frequently but at least once a week Title and Subtitle. I seldom deliberately use Normal. I generally manage my styles using the Manage Styles dialogs.

    • Hi Charles, Thanks for your comments. The Word for Windows user interface is a much easier way to manage styles. This article is primarily for Mac users, who don’t have that same facility. The user interface doesn’t allow reordering styles, so a hack is necessary.

  4. Thanks so much for this set of instructions. However, I’m having some difficulties with getting Word to recognize the file once I retitle it a docx.
    1. For some reason, when I change the docx to zip, the “Archive Utility” program processes to a .zip.cpgz file (so, I use the “Unarchiver” app).
    2. Skipping all the actual xml editing, I immediately recompressed. I selected [Content_Types].xml plus three folders: customXml, docProps, and word (Note: there’s a fifth file present: _rels. I’ve tried selecting or not selecting, and neither way made a difference). I used the OS system “Compress 4 Items” feature to create a zip file.
    3. I change the suffix of the zip file back to docx.
    4. When attempting to open, MS Word notes that this is corrupt (“The file is corrupt and cannot be opened”).
    At first I went through and made changes to the styles.xml file and thought I may have messed things up. But when I went through just these steps (making no adjustments), I received the corrupt file notice. Any suggestions that you or your readers may have are very welcome. Thanks!

    • macOS users do have a couple of hassles when editing XML. One issue is with the GUI version of the Archive utility, which doesn’t seem to rezip files in a way that Office can parse. Another problem is with the operating system needing to create an invisible .DS_Store file in every folder that is displayed in the finder. My article about editing XML in macOS may help. Editing in a program that can read and write zip files, like newer versions of BBEdit, sidesteps both issues and should solve your problems.

      • Thanks again for the great help. I struggled to get the coding to work, even with the information on the “editing XML in macOS” article. However, that article pointed to the ability in BBedit to directly open docx files without unzipping/zipping. That process was simple, and I now have a fully customized Word doc. Thank you!

        On a related issue, the instructions above on reflowing Markup>Tidy are outdated. The most recent versions of BBedit do not support Tidy. The good news is that another wonderful person built a quick plugin that emulates that process very nicely: https://gist.github.com/ideabucket/5231db1261ed0f15bd59

  5. At first I was confused, I thought you had left some steps out, but I found the missing material in the May 2016 update to the “XML Hacking Editing in macOS” article.

    It’s working pretty well. The tip to BBEdit was brilliant. Yes, I was able to get my qFormat/Quick Format list down to just four items, although I can’t seem to make Title go away.

    I changed the UI priority of Body Text, which I use rather than “Normal”, to 0, but it stays at the right end of the Quick Format List and stays way down in the Styles Pane as well. And when I open the file with Word 14.7.7, I can see that it still says Priority=100.

    As Joe noted, the Markup > Tidy option is gone and the newer Markup > Utilities > Format… seems to only work one line at a time. I still had all the style names stacked up on a single, very huge line.

    To remedy that, I added a line break wherever the original had >< as the delimeter between styles. Maybe that's why I'm not resetting the Body Text priority. Do you think?

    Anyway, thanks for a useful article.

    • Sorry for the delayed response, I had to do a little research. I’ve revised the article as a result. The styles.xml is read by Word 2007/2008. There is an similar part for later versions of Word called stylesWithEffect.xml. You should make identical revisions to both files to ensure you get the same styles display in all version.

      I wrote to Bare Bones Software, the company behind BBEdit. The Markup>Utilities>Format… command is intended for use with HTML documents rather than XML. They sent me a script that I added to the installation that does a somewhat better, but not perfect job (it adds line breaks after every space in addition to between >< pairs). Here is their contact page, if you ask for the XML tidy formatting script, they’ll send it for free.

      • I’m using Word 16.16 and I don’t see styleswitheffects.xml at all. And changing uiPriority numbers doesn’t seem to have any effect for me.

        • Thanks so much for your comments, I’ve used them to update the post. Word doesn’t always create a stylesWithEffects part. In that case, just edit styles.xml.

          Changing the uiPriority number in the latentStyles section doesn’t change the order if the style is also in a later section that over-rides latentStyles. This is the case with Normal style, which appears in both places. For special styles like Normal and custom styles, I’ve added steps for setting the uiPriority number. Please see the last section of the revised post.

  6. Why can’t Microsoft and it’s gazillions of people working and gazillions of dollars do this for MAC USERS. Hey, I know you have a vendatta and it’s all very high school, but my money is a green as anyone else’s. It is absolutely ABSURD that mac users aren’t able to organize the styles in the ribbon.
